ISOMEC
Piping Isometric Drawing Software
Piping Isometric Drawing Software
ISOMEC is automated, rule-based, and specification driven according to the industry standard. Various Thickness Calculations as per ASME 31.1, 31.3, 31.4. Valve Material Sheet generation, Initial/estimated MTO, as well as various reports generation like PMS, VMS, Thickness Calculation, Spec Index, etc.
It is also used for making automatic Piping Isometric drawings, Piping Spool drawings, the Bill of materials, and reporting from the outline of isometric. This specific piping drawing application for Piping Engineering takes care of the complete Isometric drawing and related documents and deliverables.
ISOMEC helps in achieving the maximum standardization, resulting in greater productivity and profitability.

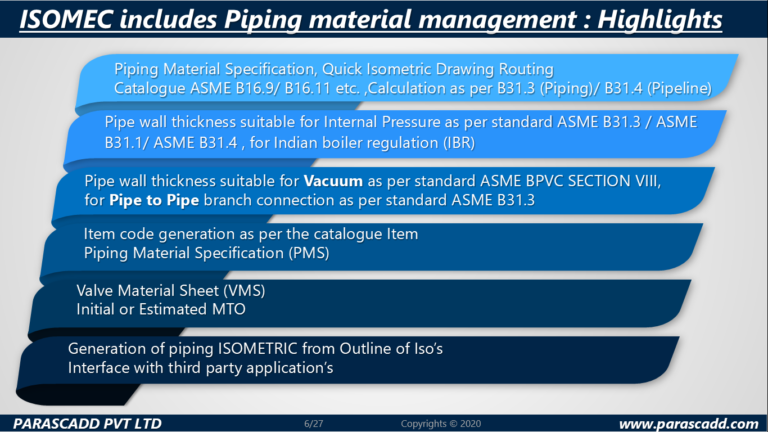

Highlights
- Catalogue ASME B16.9/ B16.11 etc.
- Itemcode generation as per the catalogue Item
- Calculation as per B31.3 (Piping) / B31.4 (Pipeline)
- Piping Material Specification (PMS)
- Valve Material Sheet (VMS)

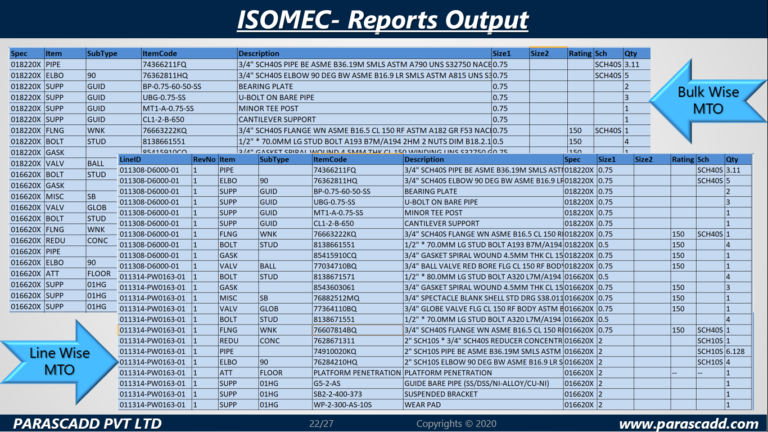

- Initial or Estimated MTO
- Generation of piping ISOMETRIC from Outline of Iso’s
- Interface with third party application’s
ISOMEC Product Demo
ISOMEC Brochure
Download Brochure
Read how ISOMEC will help you to create Piping Isometric drawings, Piping Spool drawing, etc.

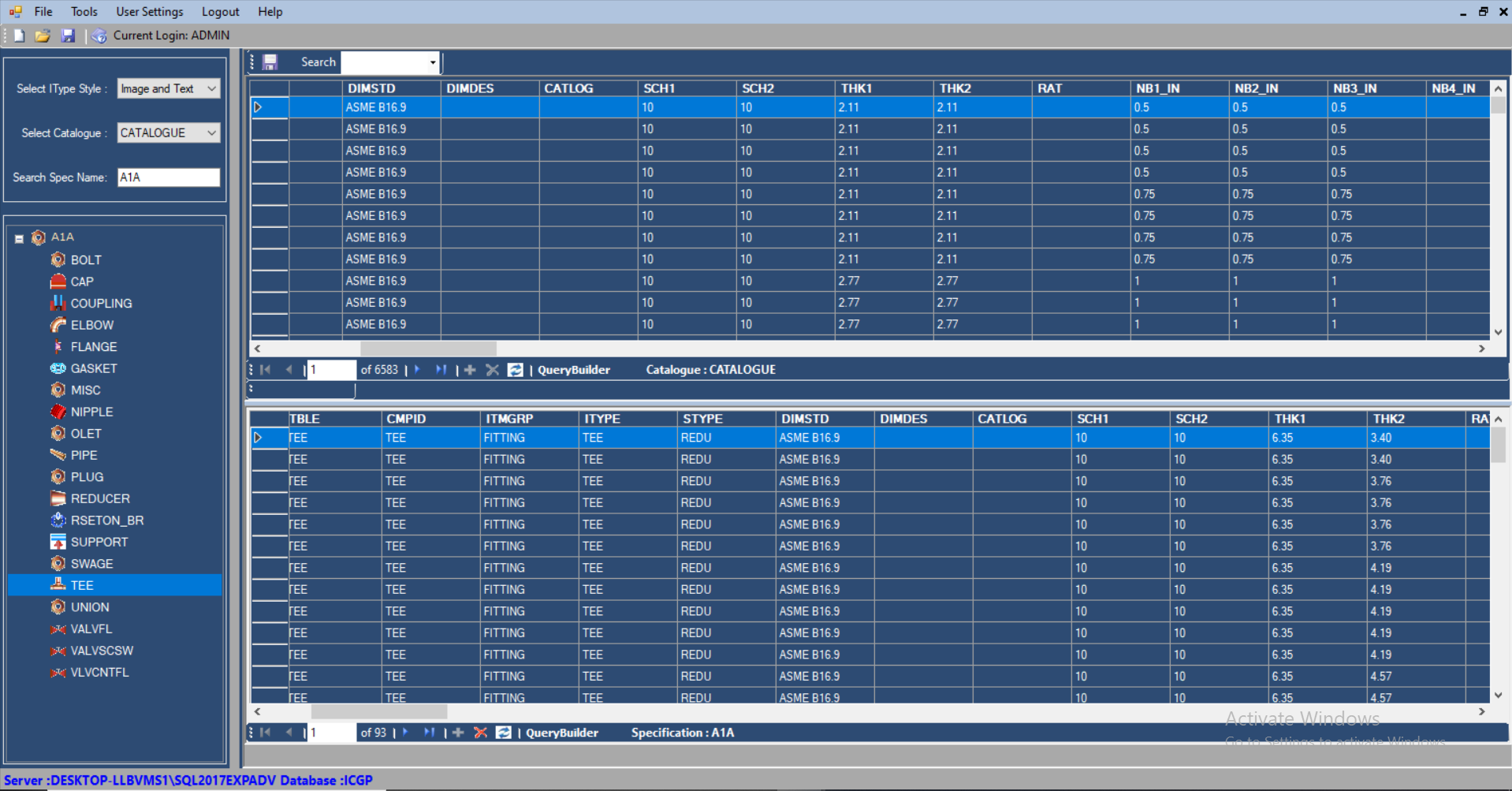

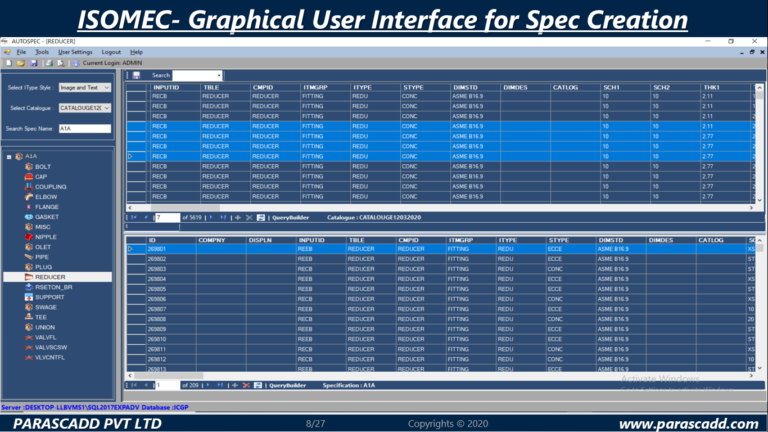

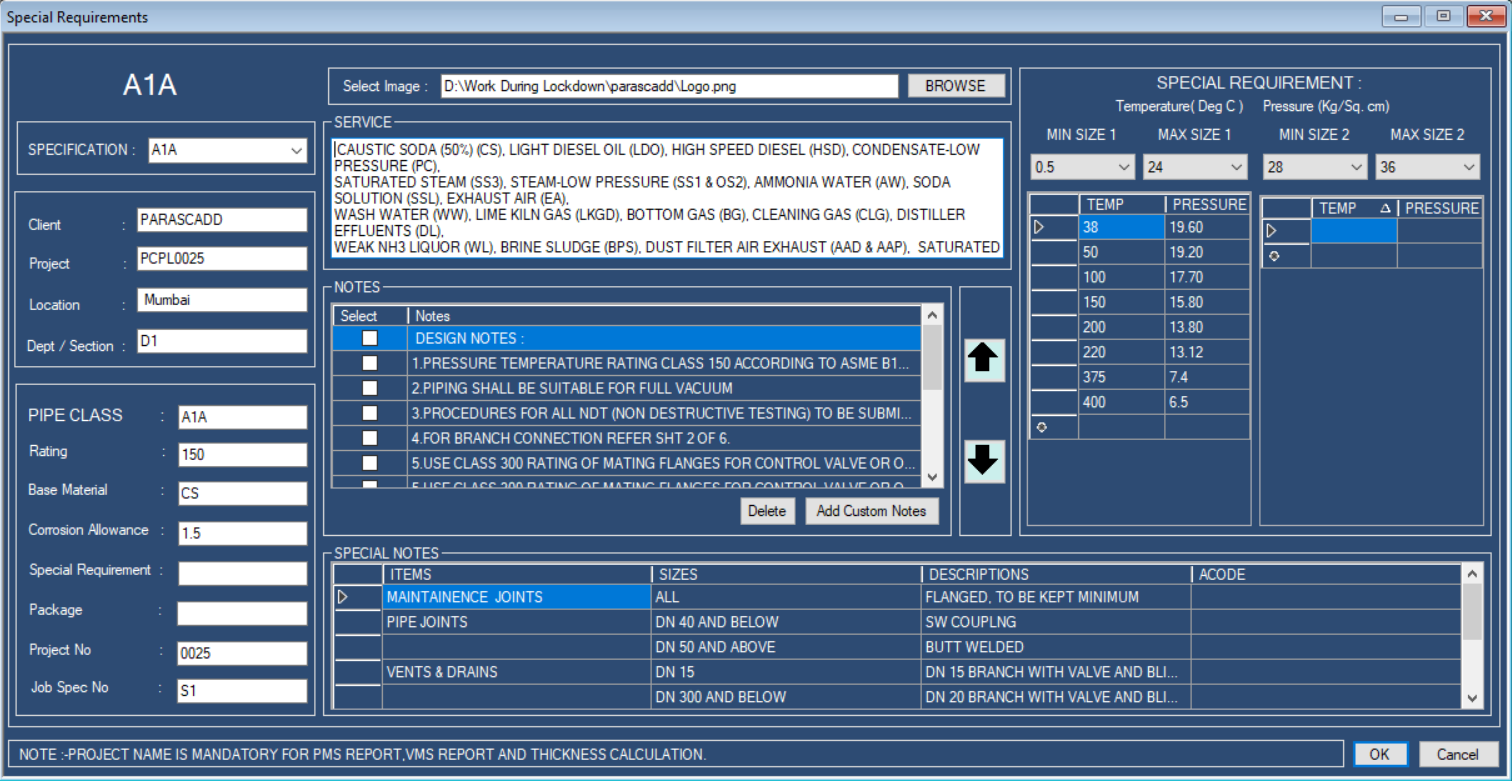

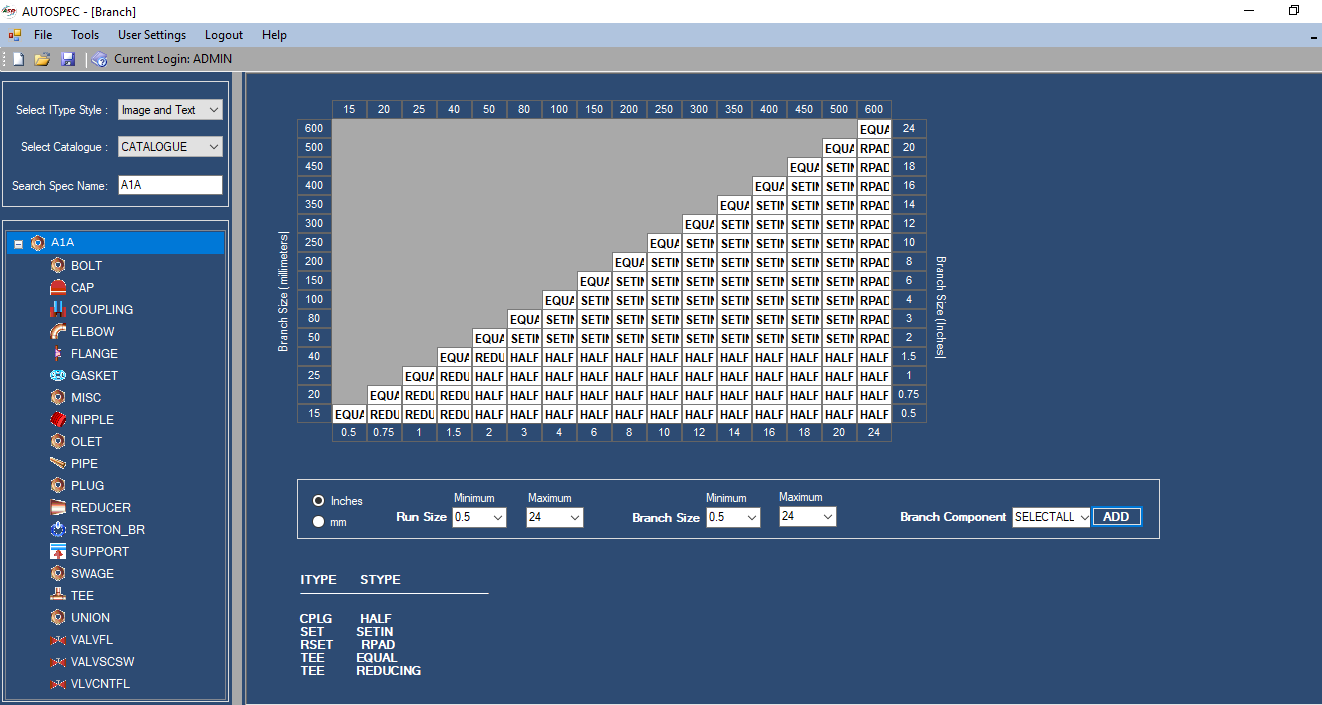

AUTOSPEC (Piping Material Specification)

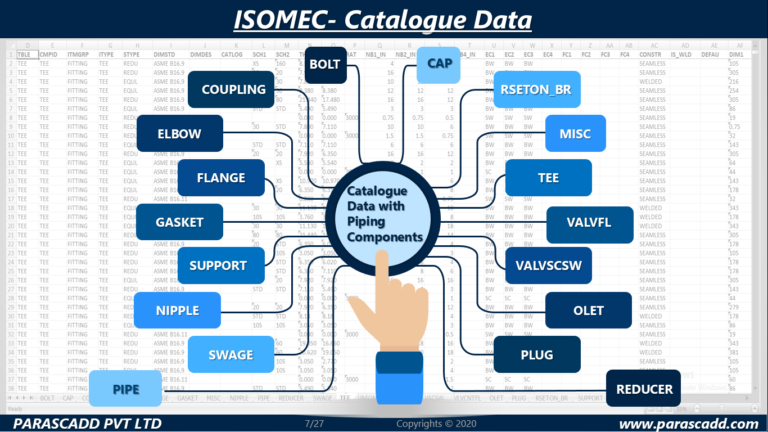

This module is used for creating piping material specification from the component catalogue along with component dimensions. The component catalogue can be updated with piping items which are saved logically using breakup parameters like Item type, base material, material grade, material description, dimensional standard, short / long description, size, thickness / rating / schedule, end conditions etc. Components belonging to a piping class can be selected from component catalogue. One can query on piping parameters to filter out the specific item of the specification.

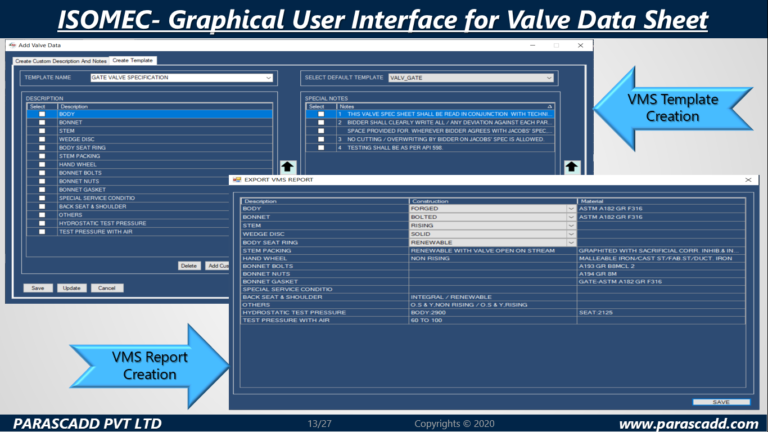

EMM (Engineering Material Management)

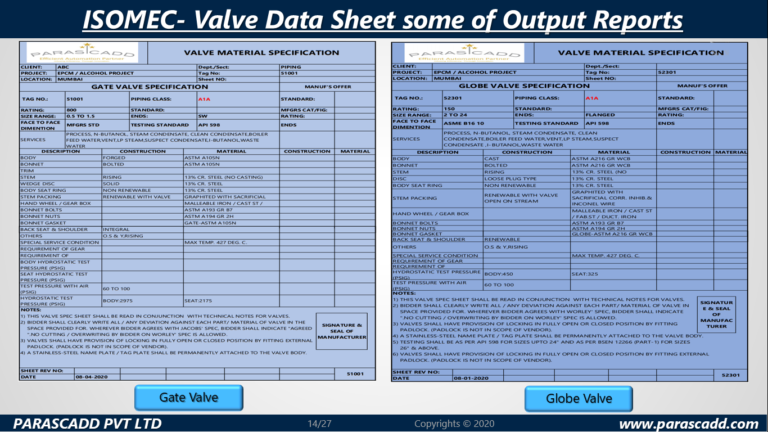

Engineering Material Management used for creating Valve Material Sheet (VMS).

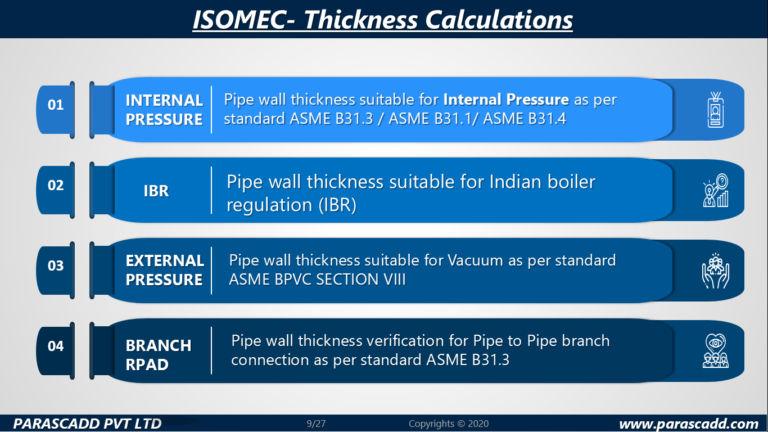

It is also designed for various thickness calculations like;
- Pipe wall thickness suitable for Internal Pressure as per standard ASME B31.3 / ASME B31.1/ ASME B31.4

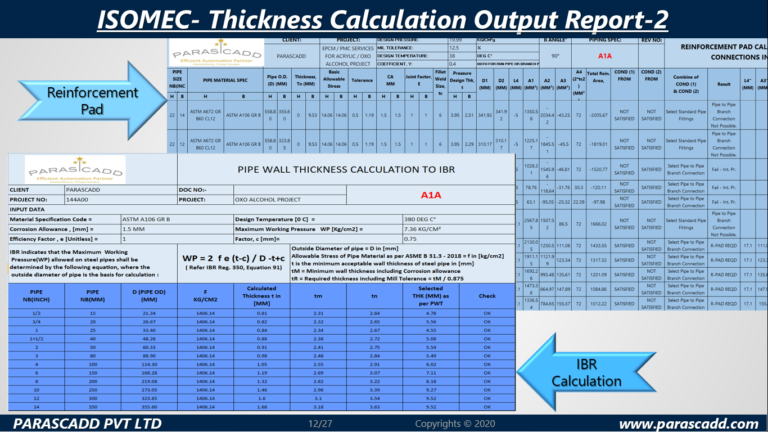

- Pipe wall thickness suitable for Indian boiler regulation (IBR)
- Pipe wall thickness suitable for Vacuum as per standard ASME BPVC SECTION VIII
- Pipe wall thickness verification for Pipe to Pipe branch connection as per standard ASME B31.3

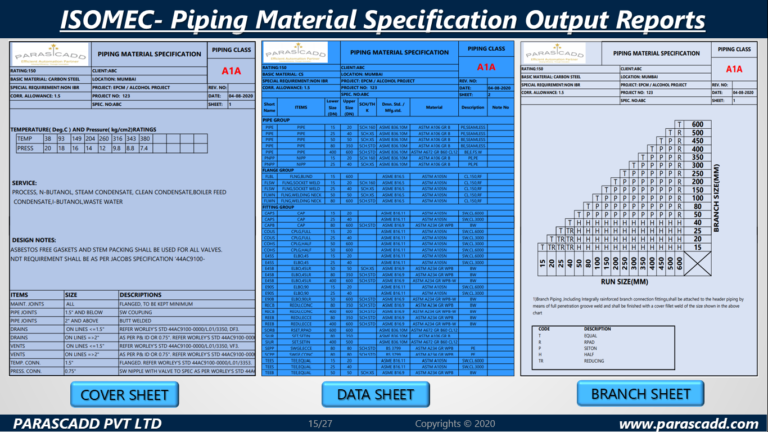

Piping Material Specification

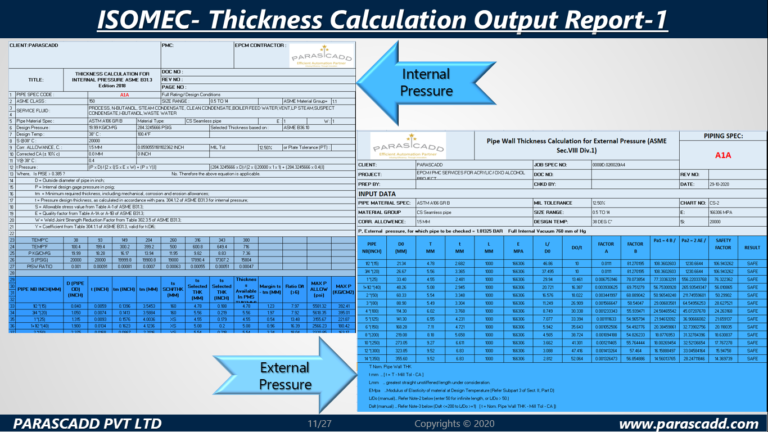

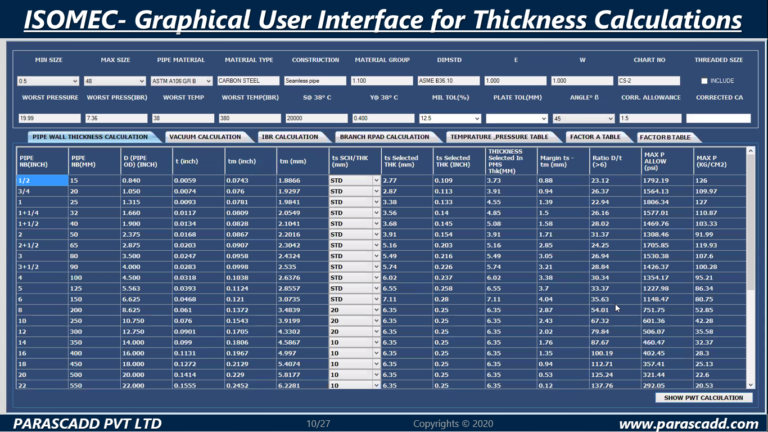

Thickness Calculation
Valve Material Sheet

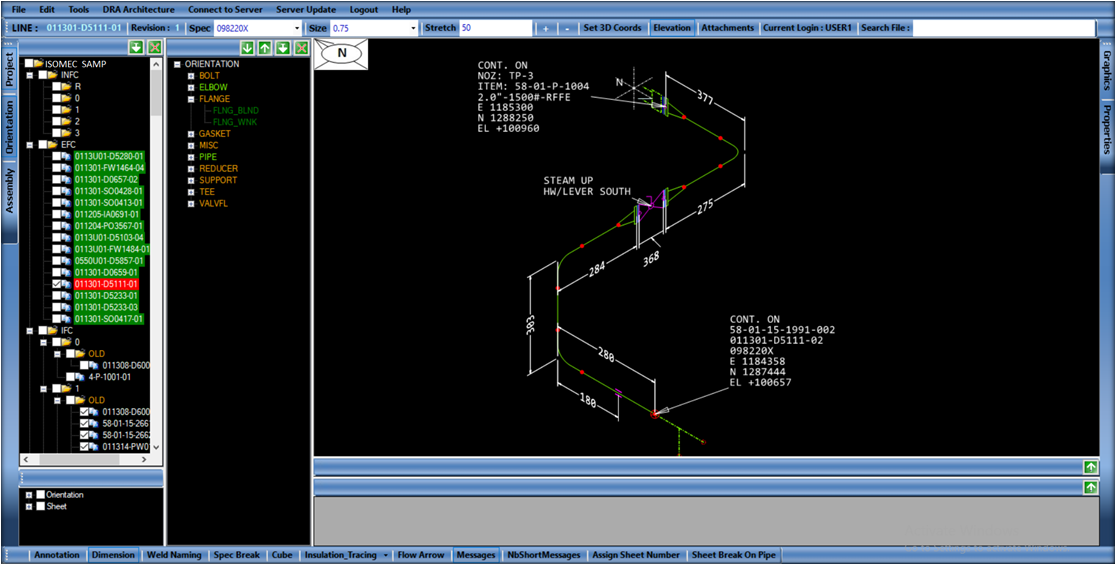

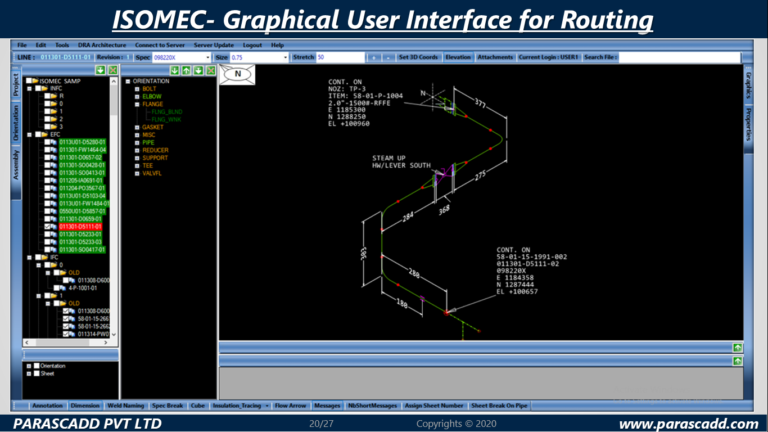

ISOMEC (Quick Isometric Drawing Routing)

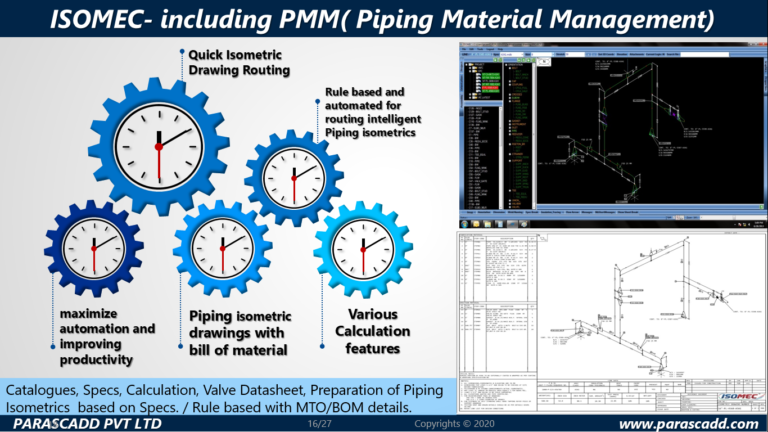

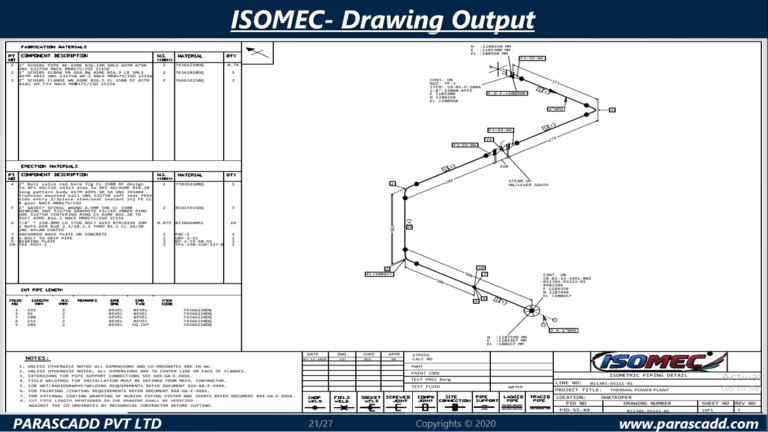

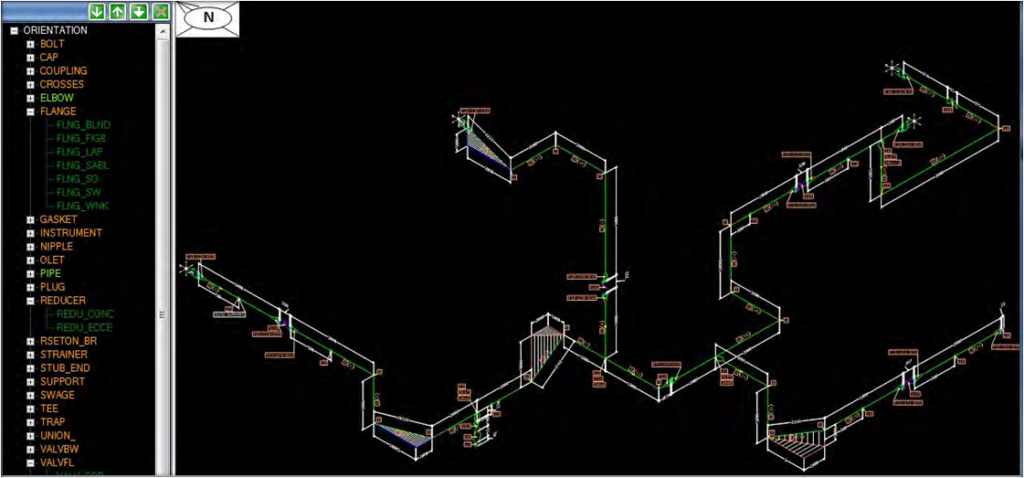

ISOMEC is a piping engineer’s software used for making piping isometric drawings, piping spool drawings, bill of materials, and reports automatically from the outline of piping routing reference. The software is specification driven, rule-based, and automated for routing intelligent piping isometrics. The piping components used in the isometrics are supported with dimensions and annotations with the objective to maximize automation and improving productivity.
Benefits of Isometric Drawing Software
- Cost saving, It doesn’t require CAD for implementing the ISOMEC.
- Time Saving, This EPC software is specification driven. Just a rough sketch is required to turn the work that normally takes hours into minutes.
- 75% of the time can be saved with respect to manual CAD drafting & calculating the Material.

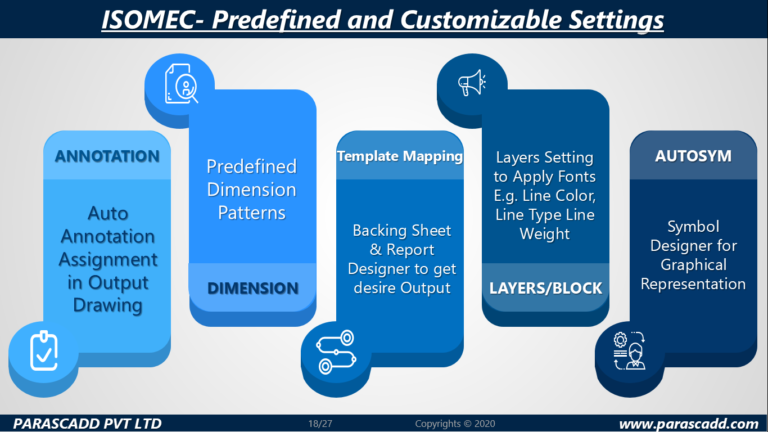

- Can be configured for various industrial requirements by customizing the software using AUTOSYM & AUTOSPEC.
- Revision management is inbuilt in the software. This drawing software automatically marks clouds and reports the relevant details for any addition, deletion or modification.

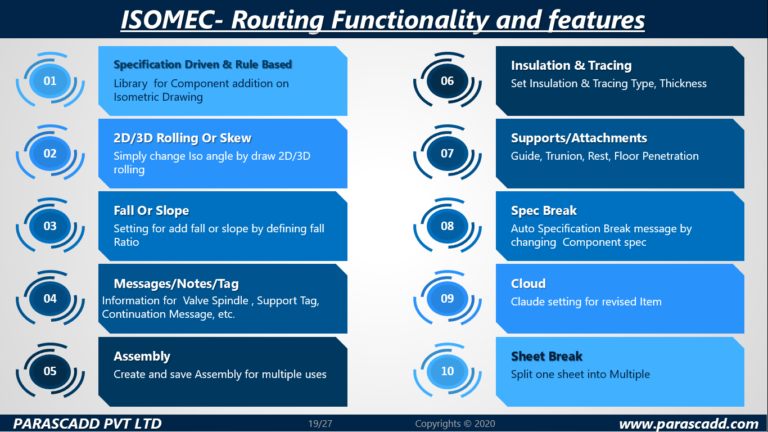

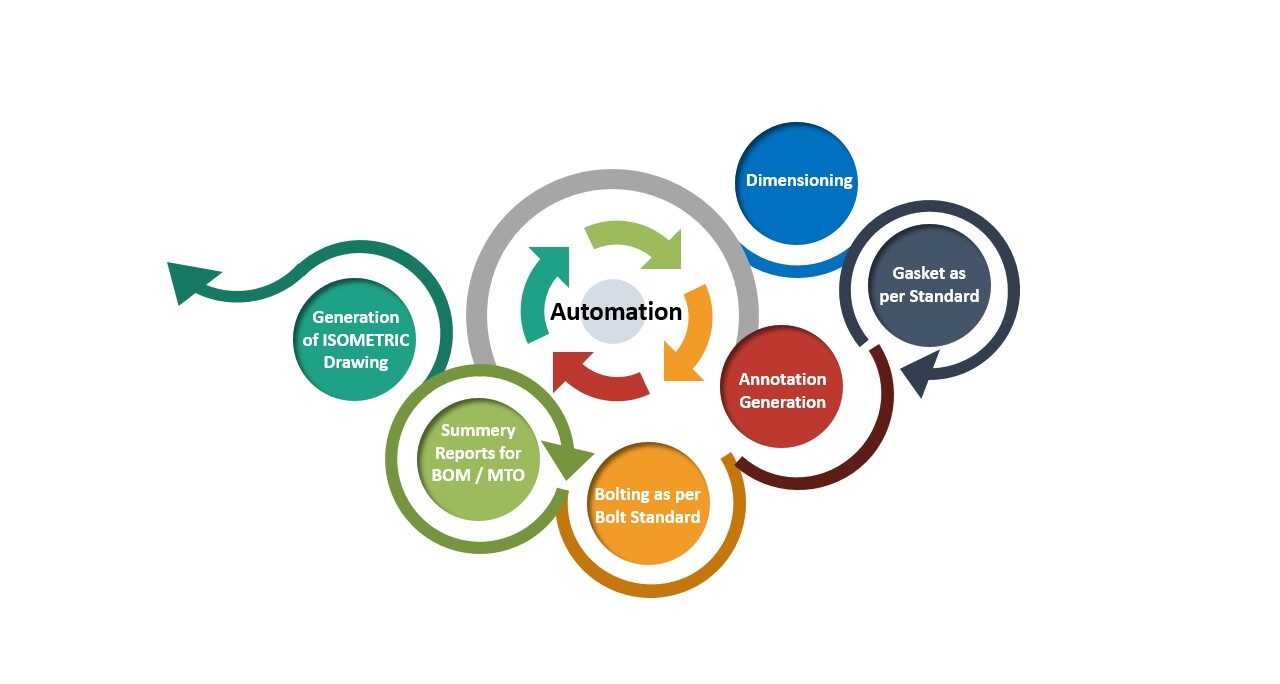

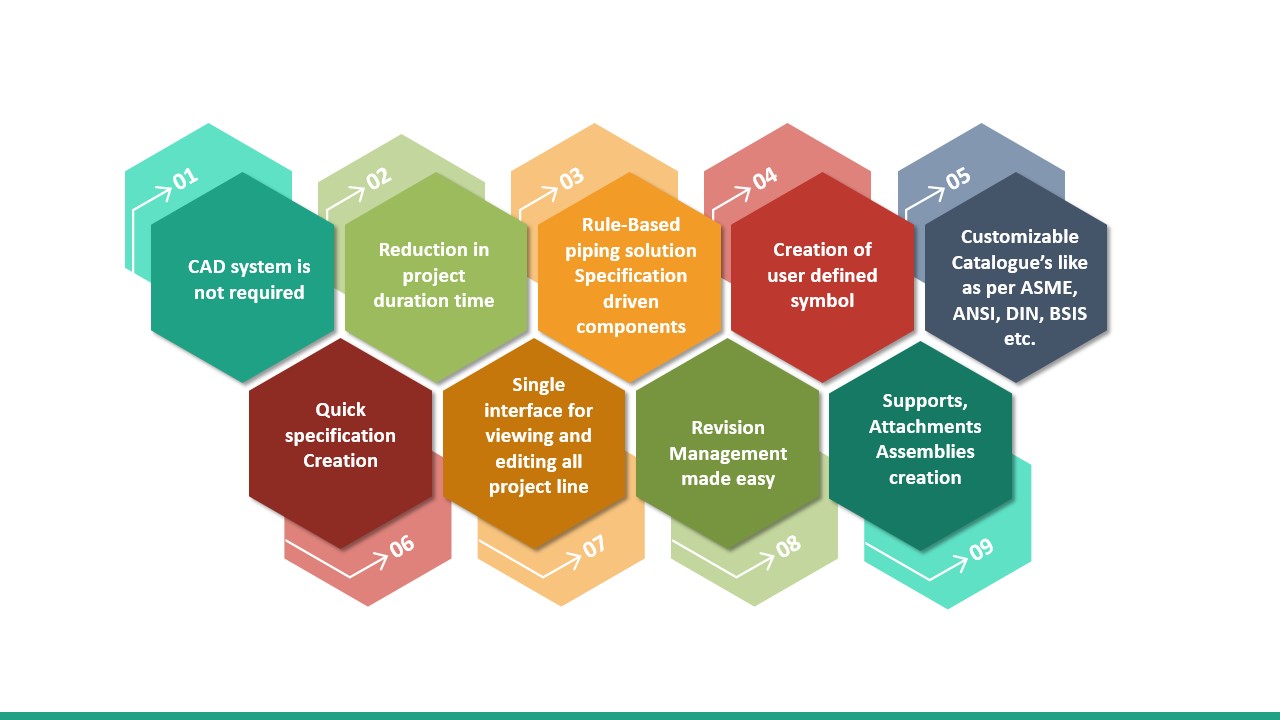

Features of Isometric Drawing Software
When isometric pipe drawing software (ISOMEC) combine with specification generation AUTOSPEC, Piping Material Specifiacation and Symbol Generator turns into a unique, independent world-class system which faciliates automated isometrics.
